Hi-Fi Headphone Amplifier

Item: GV-210

Input: 3.5mm Audio Jack * 1

Output: 3.5mm Audio Jack * 1

It can connect various audio players and mobile phones to process, amplify and output its audio signals, which can drive all kinds of earphones. This HiFi headphone amplifier design is normally used to drive a headphone with a relatively high impedance. Hi-Fi headphone amplifier, delicate, compact, lightweight, and portable, which make it convenient to carry, can output remarkable sound without distortion.

【Mini HiFi headphone Amplifier】It is Delicate, Compact, Lightweight, and Portable that It can be Carry Conveniently. Aluminum Matte Surface and Fashion Design Provides You a Comfortable Handheld Feeling.
【Purity Sound Quality】3.5mm AUX Input and Output, SNR>100Db and THD+N 0.003%. Support Headphones with Impedance of 16-150Ω. Make It Possibility to Output Not Just Louder Sound, but a Sharper and More Real Stereo Sound without Distortion.

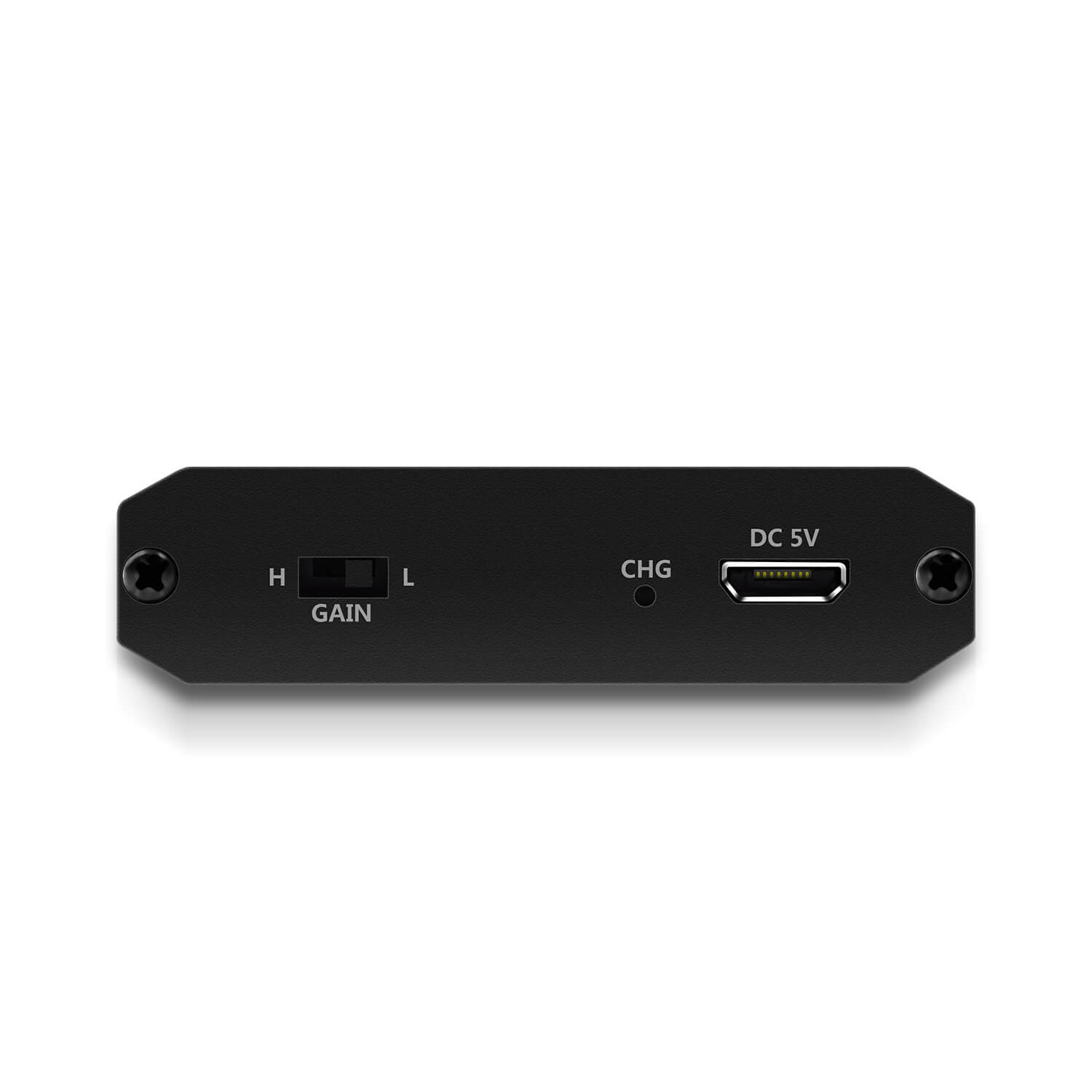

【Two-stage Gain Switch】It Enhances the Signal Input Into the Amp Circuit for Optimal Performance of the Headphones.
【Rechargeable Lithium Battery】It Adopts a Rechargeable Lithium Battery , which Allows It to Stay Working More than 8 Hours. Beside,the Item Comes with 1.2m USB Cable and Audio Cable.
【Wide Compatibility】It can Remarkably Compatible with a Various of Digital Devices with 3.5mm Output, Such as MP3 MP4 Mobile Phone Computer.

Maximum power output 180mW  32Ωload Distortion 0.001%
Load impedance 16-300Ω SNR 116dB
Working voltage DC3.7-4.2V Dimension(L*W*H) 94*52*13MM(No convex knob part)
Charging voltage DC5V Net weight 75G
Frequency response 10Hz-40kHz(±3dB) Package size(L*W*H) 135*62*31MM
