Project Description

  • GV-A002 Optical audio switch
  • GV-A002 Toslink splitter
  • GV-A002 Toslink audio splitter
  • GV-A002 digital audio splitter

SPDIF/TOSLINK Digital Optical Audio 1×3 Splitter

Item: GV-A002

Input: Toslink * 1

Output: Toslink * 3

This SPDIF/Toslink Digital Optical Audio Splitters can let the users to connect and distribute one digital optical Toslink source to three optical Toslink (SPDIF) inputs on your AV amplifier


  • One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
  • Audio format support: LPCM2.0/DTS/Dolby-AC3
  • Support signal retiming
  • Use optical fiber cable that losses less than 0.2dB/m, Output distance is up to 40m
  • Over-voltage protection can prevent the damage caused by connecting unmatched to the machine
  • No loss of quality
  • Installs in minutes

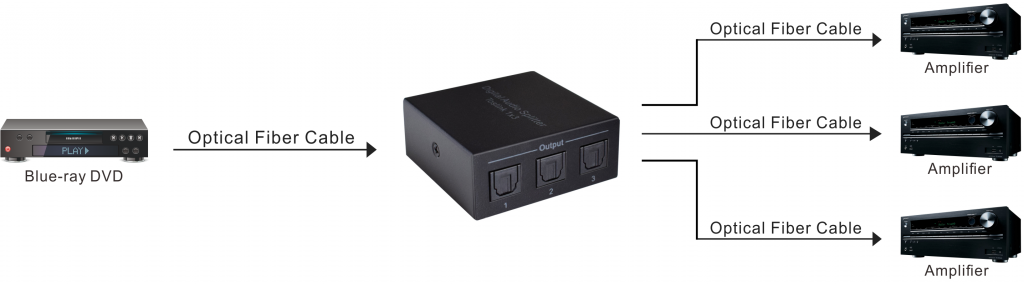

GV-A002 link image

Support audio format LPCM2.0/DTS/Dolby-AC3
Peak wavelength 650nm
Max baud rate 16Mbps
Output cable distance ≤40m(Use the optical fiber cable that losses less than 0.2dB/m)
Power Supply USB Power Cable
Operating Temperature range (0 to 40℃)
Operating Humidity range 5 to 90%RH(No condensation)
