Project Description

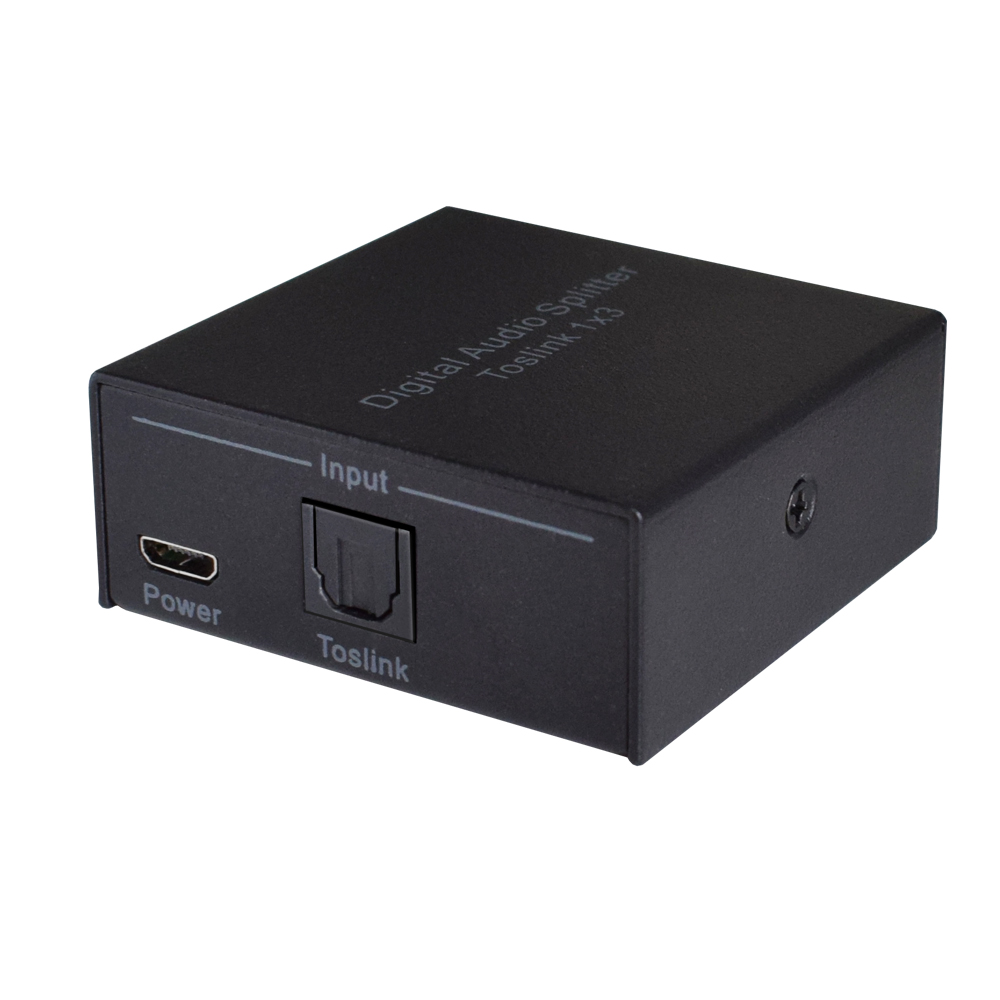

SPDIF/TOSLINK Digital Optical Audio 1×3 Splitter
Item: GV-A002

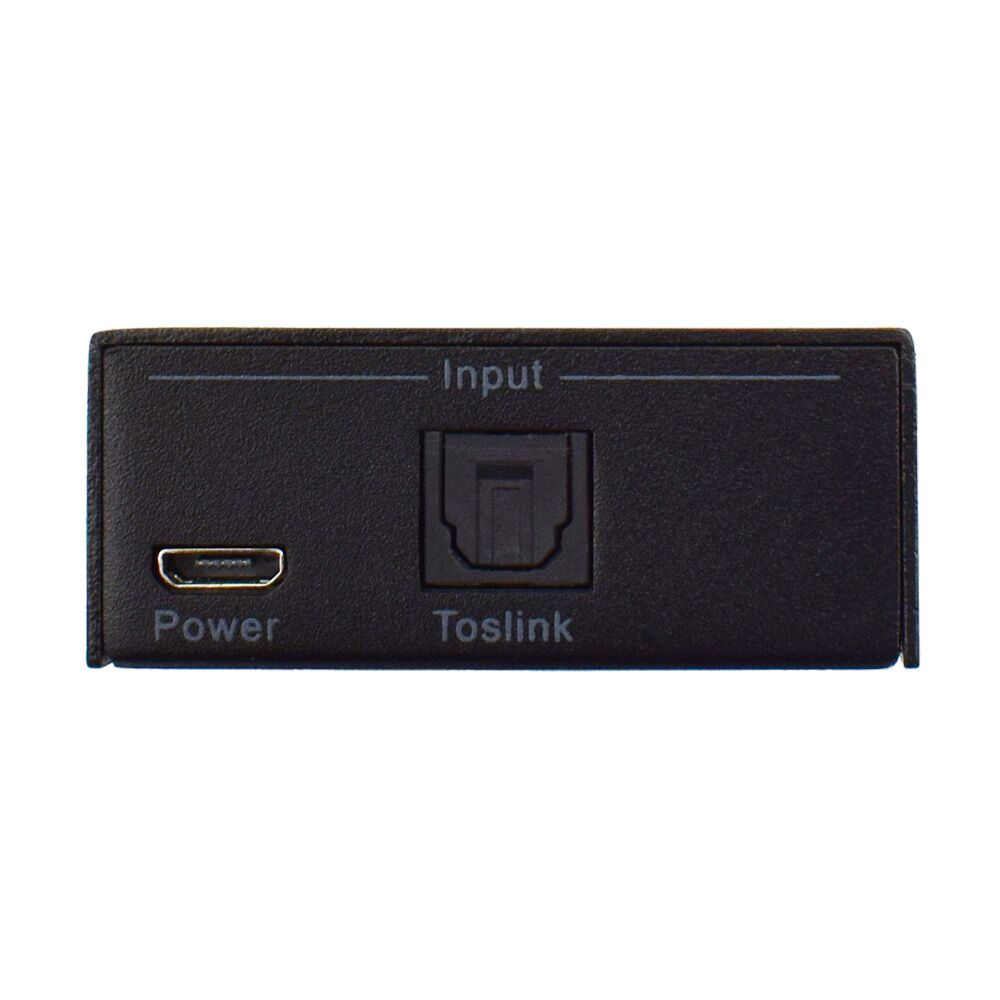

Input: Toslink * 1

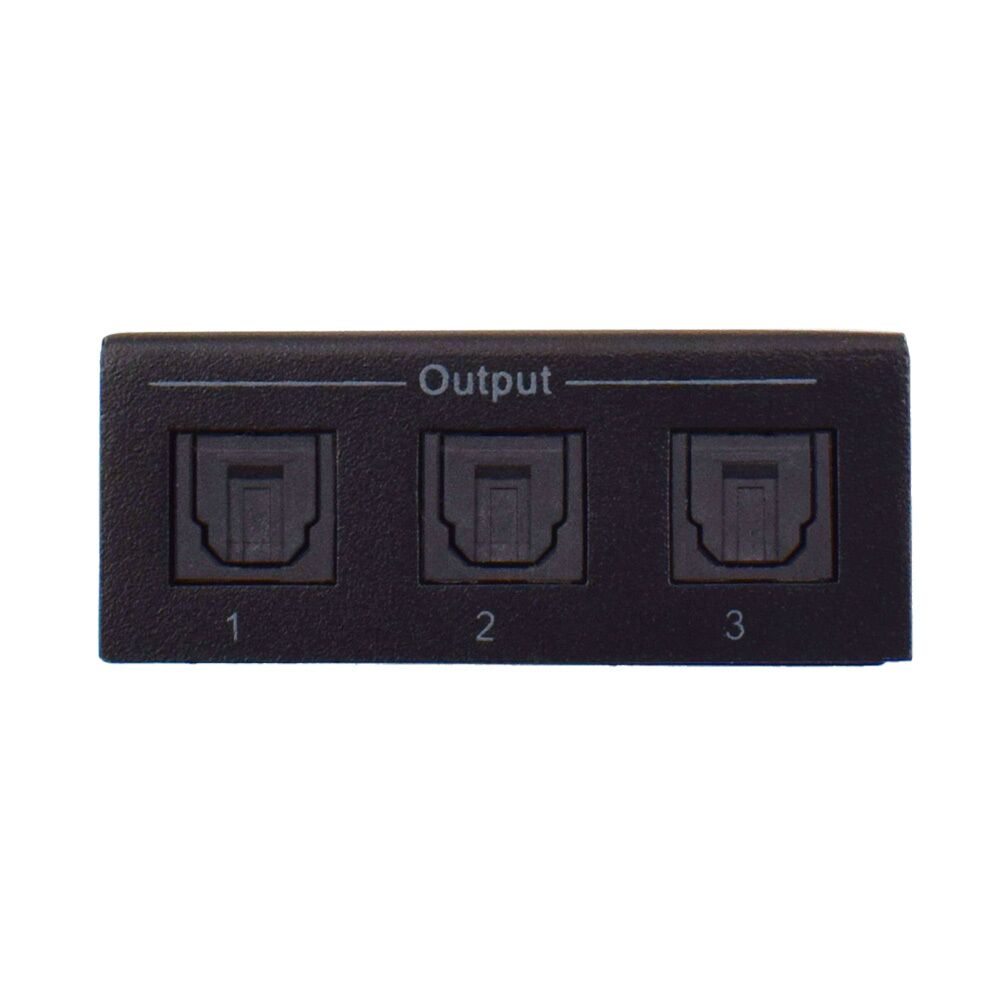

Output: Toslink * 3

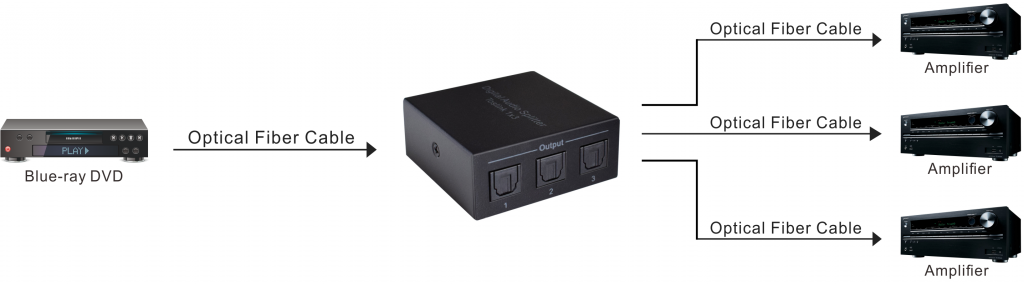

This SPDIF/Toslink Digital Optical Audio Splitters can let the users to connect and distribute one digital optical Toslink source to three optical Toslink (SPDIF) inputs on your AV amplifier
FEATURES
- One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
- Audio format support: LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Use optical fiber cable that losses less than 0.2dB/m, Output distance is up to 40m
- Over-voltage protection can prevent the damage caused by connecting unmatched to the machine
- No loss of quality
- Installs in minutes
| Support audio format | LPCM2.0/DTS/Dolby-AC3 |
| Peak wavelength | 650nm |
| Max baud rate | 16Mbps |
| Output cable distance | ≤40m(Use the optical fiber cable that losses less than 0.2dB/m) |
| Power Supply | USB Power Cable |
| Operating Temperature range | (0 to 40℃) |
| Operating Humidity range | 5 to 90％RH(No condensation) |
