2 Ports Bi-directional HDMI Switch

Item: GV-SP1237

Input: 1 or 2 HDMI Female (A-Type)

Output: 2 or 1 HDMI Female (A-Type)

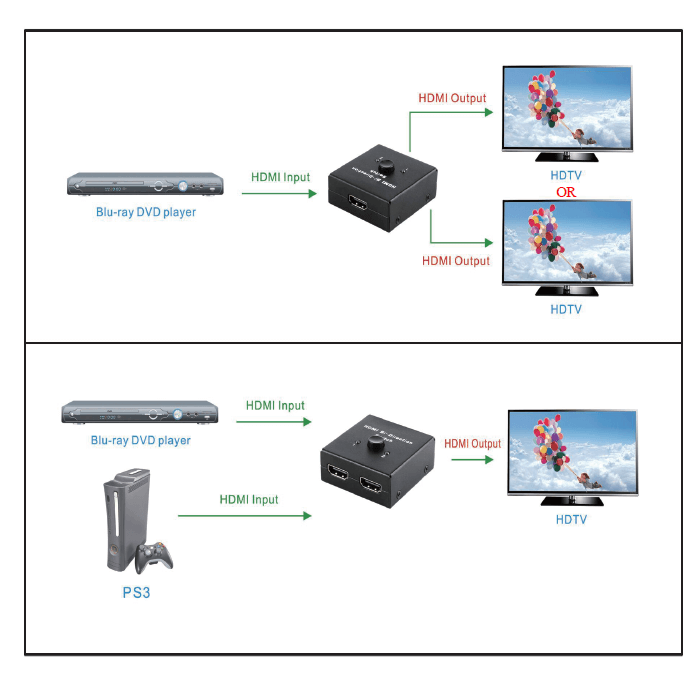

This is one device of HDMI 2 ports bi-direction manual switcher. It can easily switch two routes of HD Source to any one HD display or projector. Also it can distribute one HD Source to two HD Display or projector.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments

FEATURES:
* 2 HDMI-Host (DVD Player or PS3) to 1 HDMI Monitor or TV
* 1 HDMI-Host (DVD Player or PS3) to 2 HDMI Monitor or TV
* MAX operation current:15ma
* Full compliance with the HDMI Specification V1.0,V1.1,V1.2,V1.3,V1.4
* Main control: Manual electron select
* With 2 LED & display working port
* LED : 2 (Blue),Display working port
* Easy install & operation
* Support HDMI Plug & Play
* Support input up to 5metres AWG26 HDMI standard cable length,output up to 5metres AWG26 cable length
* Support 3D

GV-SP1237 2 Ports Bi-directional HDMI Switch
Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 4kx2k
Output Video V1.0, V1.1, V1.2, V1.3, V1.4
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 340MHz/3.4Gbps
Interlaced(50&60Hz) 480i,576i,1080i
Progressive(50&60Hz) 480p,576p,720p,1080p,2160p
Limited Warranty 1 Year Parts and Labor
Operating Temperature 0 ℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +80℃
Storage Humidity 5% to 90 % RH (no condensation)
External Power Supply No power needed
Power consumption (Max) 3W
